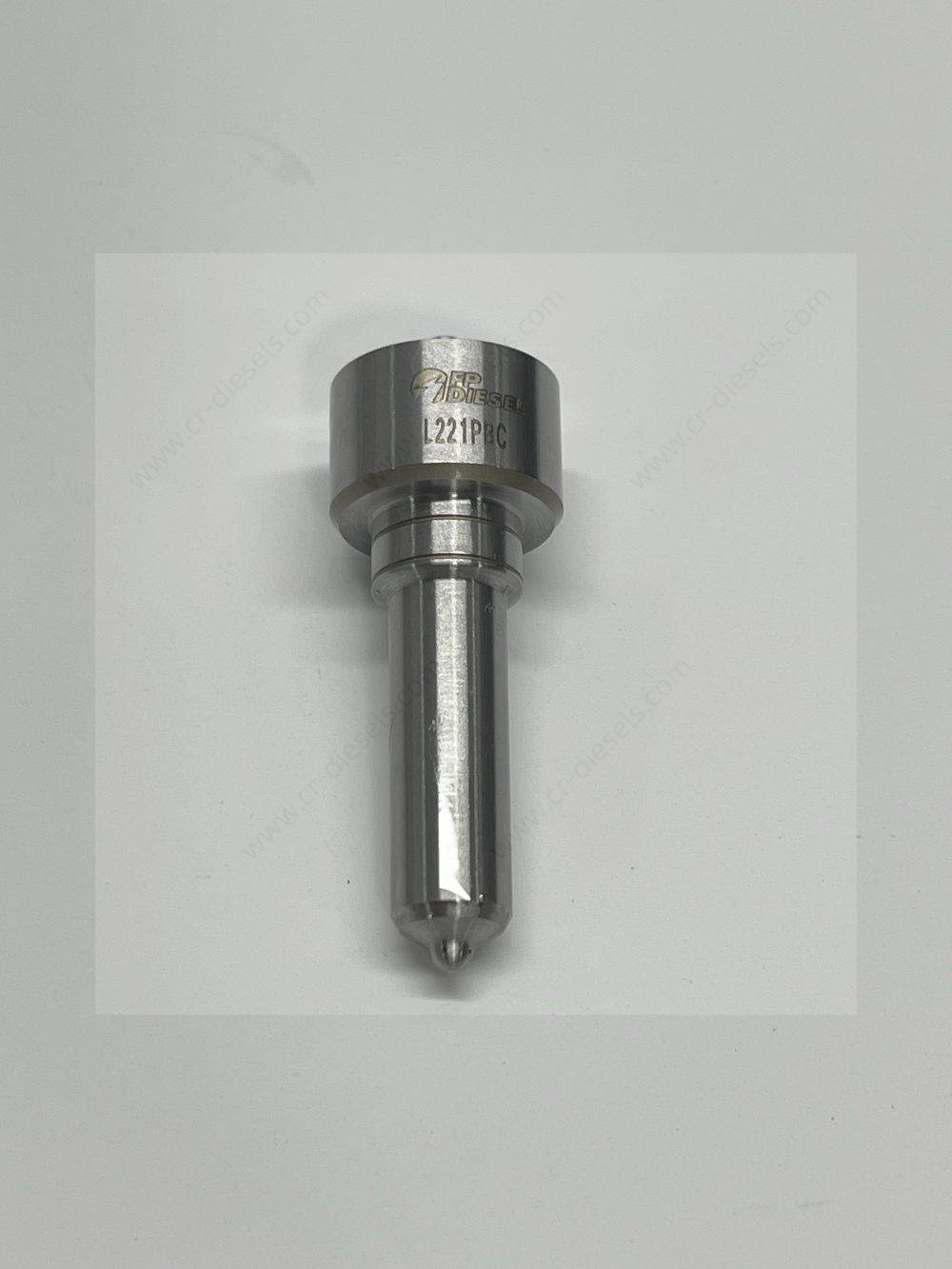

Main image of DLW NZ7001 injector nozzle showing high-precision metal finishing and engraved L221PBC part number.

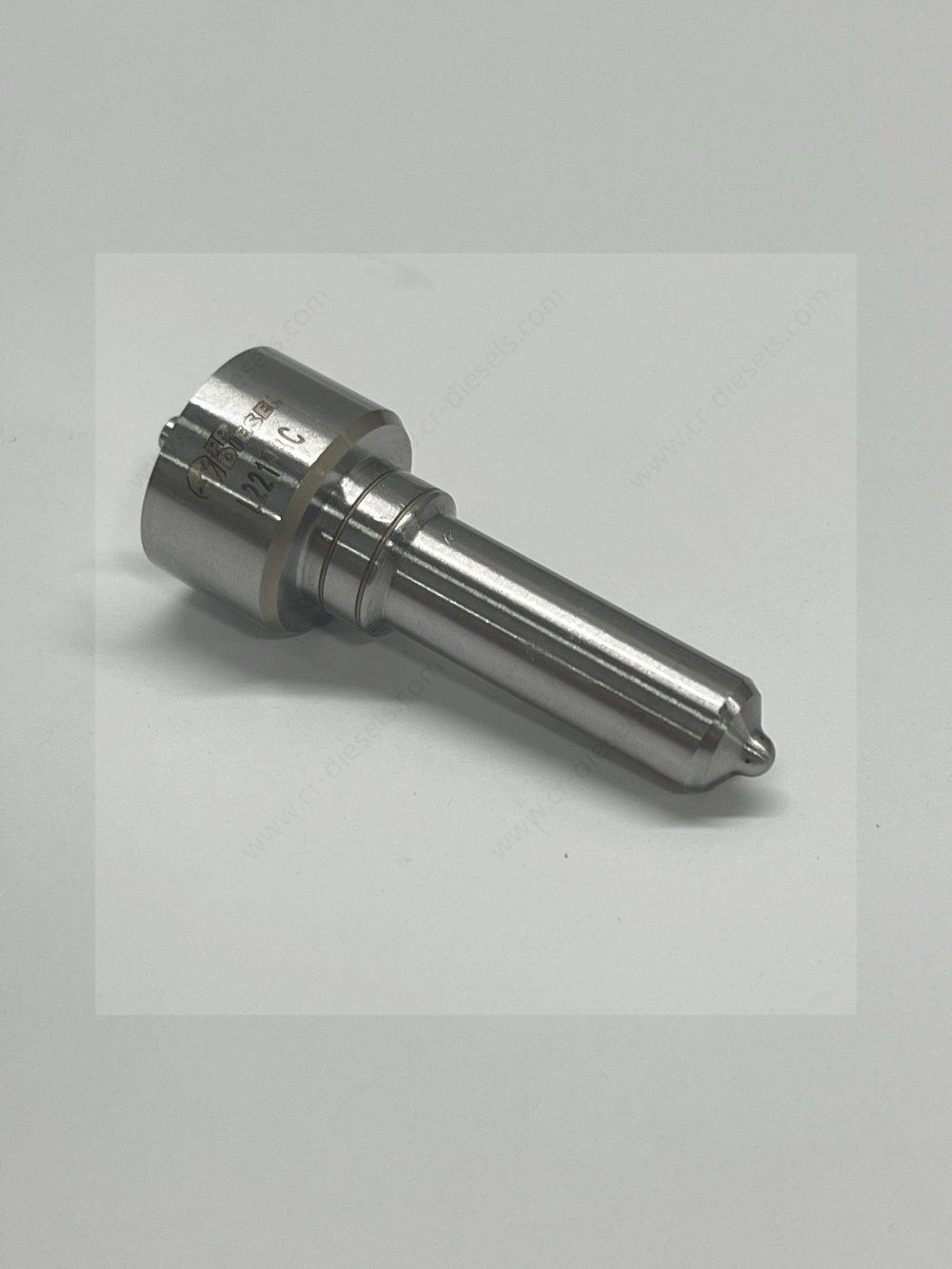

Angled side profile of DLW NZ7001 common rail injector nozzle highlighting the high-pressure sealing ring groove.

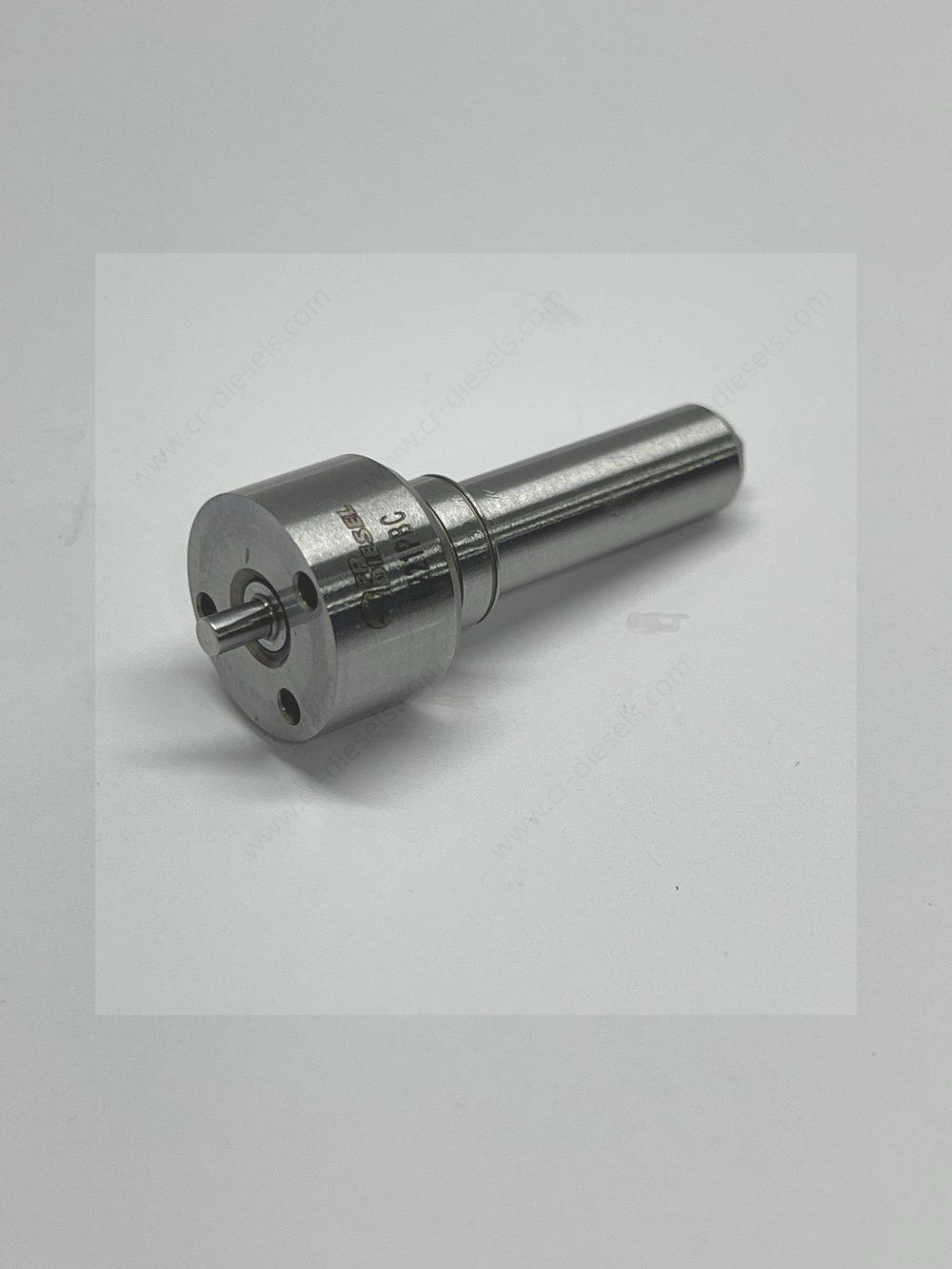

Close-up of the rear inlet surface of DLW NZ7001 nozzle, showing the needle valve end and locating pin holes for Delphi E3 unit injectors.

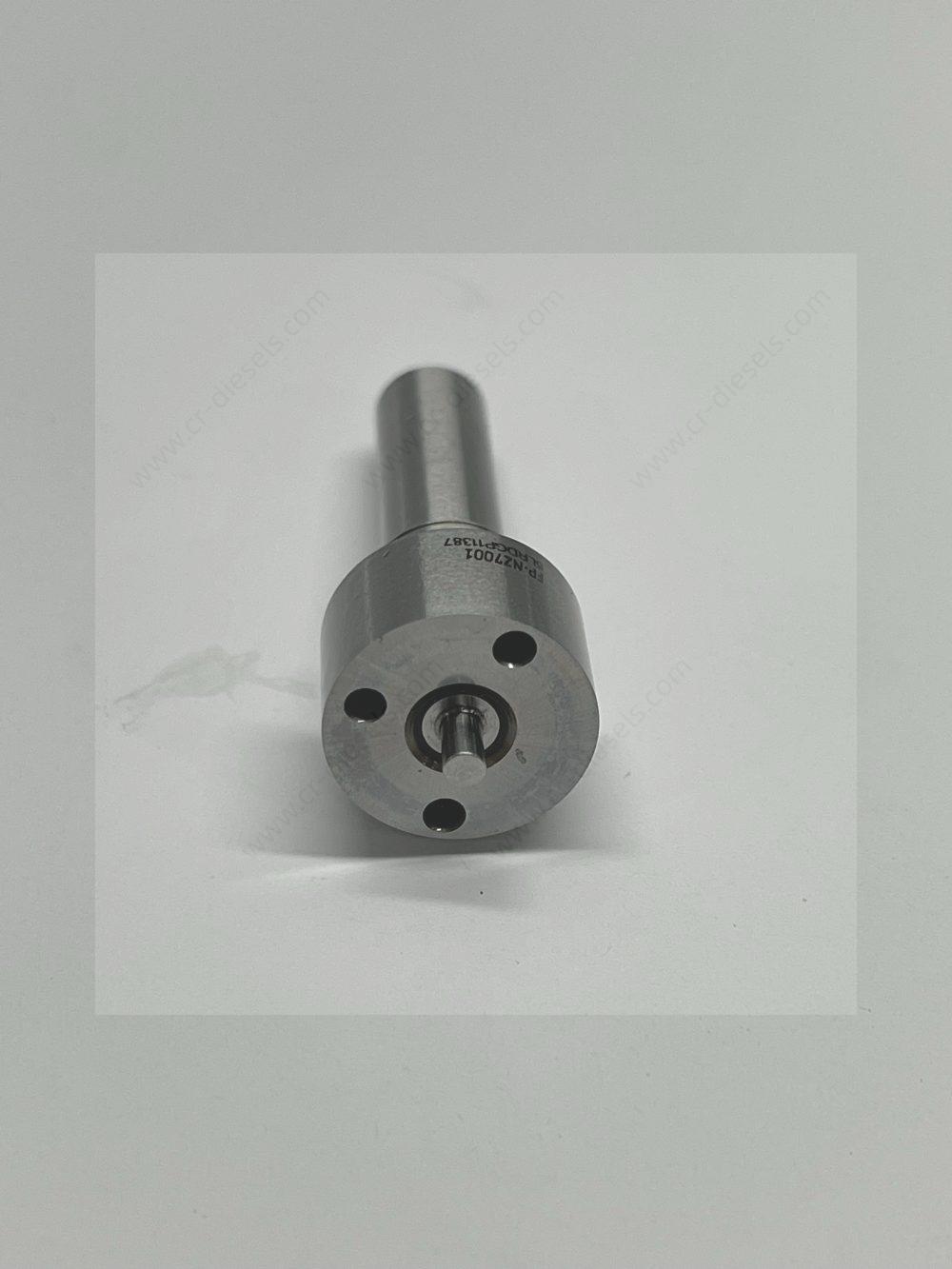

Macro shot of the bottom mating surface of DLW NZ7001 nozzle with FP-NZ7001 part number laser engraved.

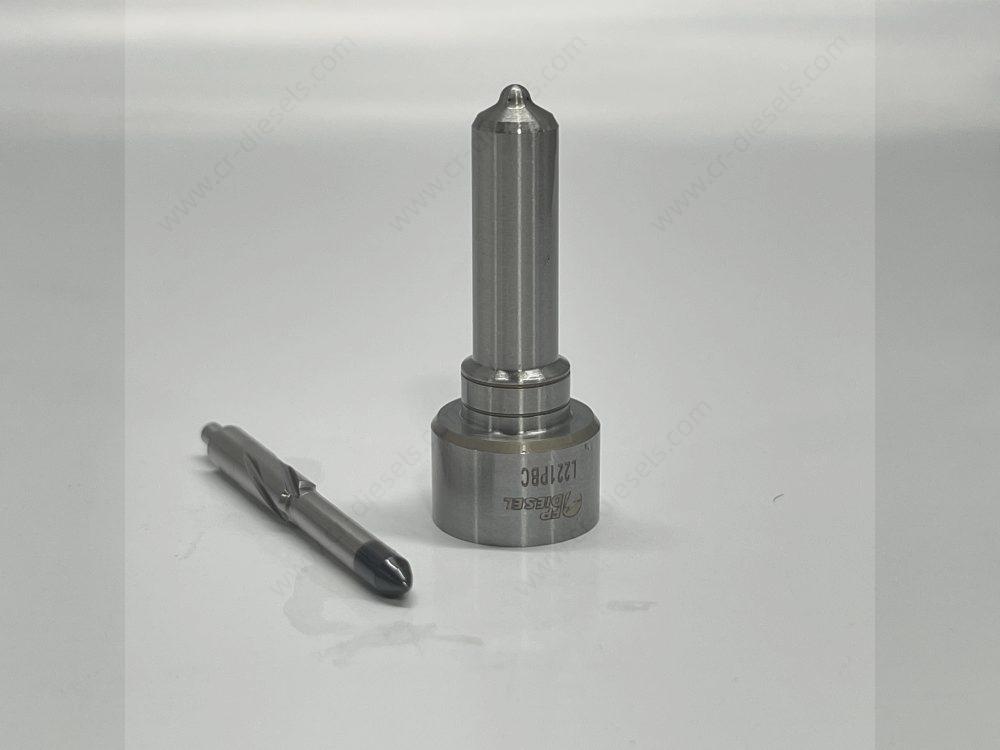

Front view of disassembled DLW NZ7001 fuel nozzle showing the black-coated heat-treated needle valve alongside the polished nozzle body.

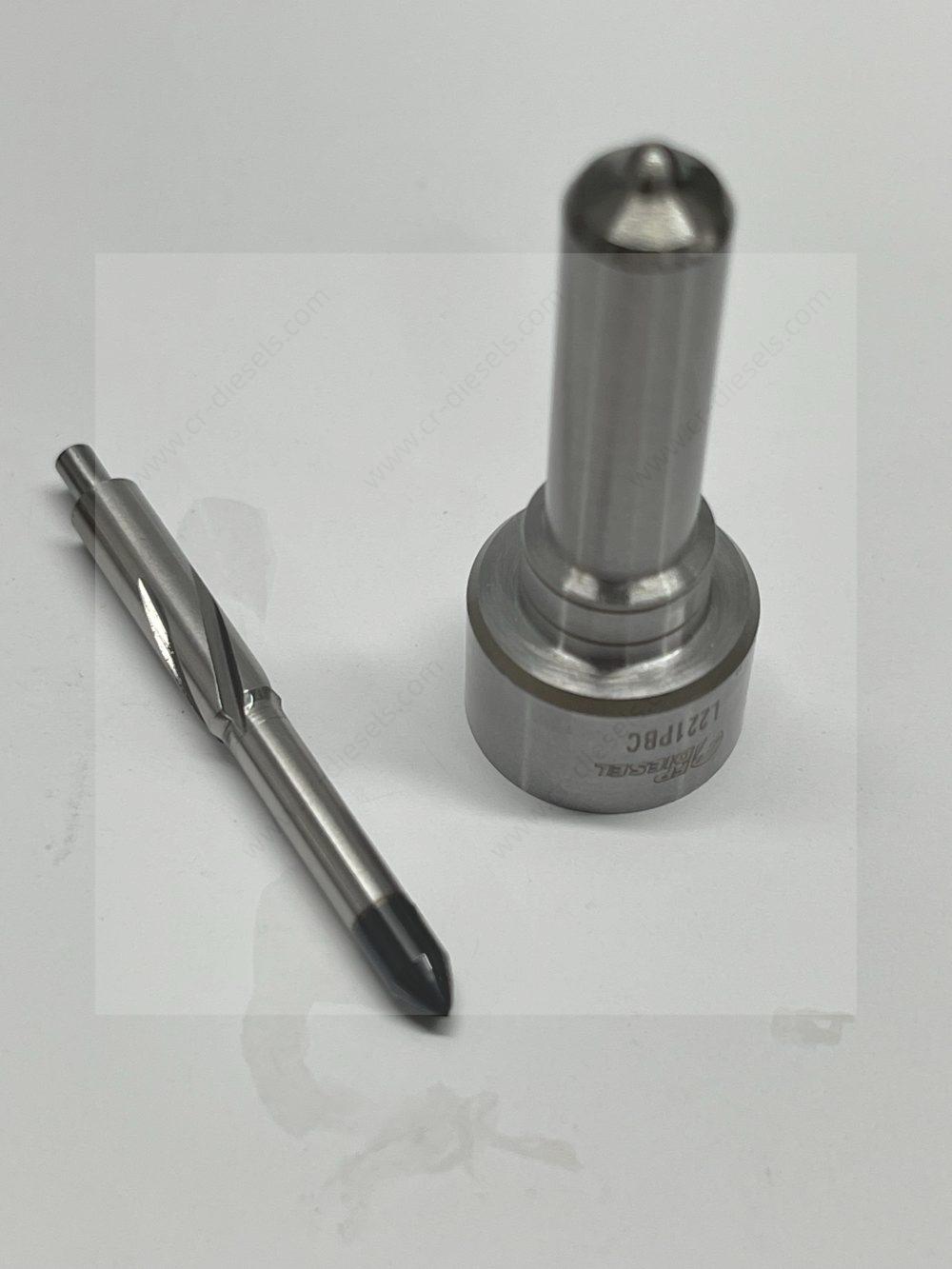

Angled disassembled view of DLW NZ7001 nozzle and matching needle, highlighting the micro-ground sliding surfaces for high-pressure sealing.

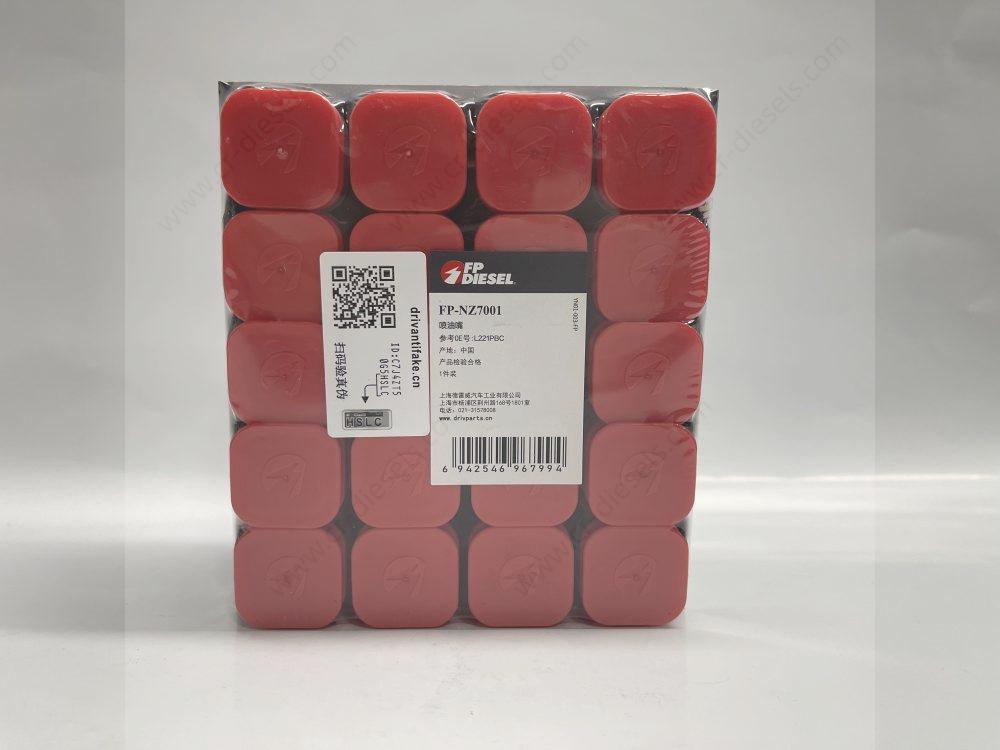

DLW NZ7001 diesel injector nozzle in a red protective package with a label marked FP-NZ7001, compatible with Delphi L221PBC.
  1. Main image of DLW NZ7001 injector nozzle showing high-precision metal finishing and engraved L221PBC part number.
  2. Angled side profile of DLW NZ7001 common rail injector nozzle highlighting the high-pressure sealing ring groove.
  3. Close-up of the rear inlet surface of DLW NZ7001 nozzle, showing the needle valve end and locating pin holes for Delphi E3 unit injectors.
  4. Macro shot of the bottom mating surface of DLW NZ7001 nozzle with FP-NZ7001 part number laser engraved.
  5. Front view of disassembled DLW NZ7001 fuel nozzle showing the black-coated heat-treated needle valve alongside the polished nozzle body.
  6. Angled disassembled view of DLW NZ7001 nozzle and matching needle, highlighting the micro-ground sliding surfaces for high-pressure sealing.
  7. DLW NZ7001 diesel injector nozzle in a red protective package with a label marked FP-NZ7001, compatible with Delphi L221PBC.

1CL221PBC-64 L221PBC Diesel Injector Nozzle Suitable for E1 Systems Volvo Trucks Construction Equipment L025PBC

Precision injector delivering exceptional fuel atomization for industrial diesel engines across heavy-duty applications, developed as a high-performance replacement alternative suitable for E1 series unit injector systems. This premium nozzle tip is fully compatible with Volvo heavy-duty trucks and construction equipment (excavators, loaders) to ensure optimized combustion efficiency. Fully cross-compatible with parts stamped L025PBC.

Request Quote WhatsApp
SKU: 1AL221PBC-78 Category: Tags: , , , , , ,

Key Features

  • High precision fuel injection — multi-hole nozzle geometry

  • Improved combustion efficiency — optimized spray pattern for stable power output

  • Reduced emissions — engineered to meet stringent environmental standards

  • Full compatibility — designed as a reliable direct replacement alternative

Technical Specifications

  • OE: BEBE4C03001 / BEBE4C03002 / BEBE4C03003 / BEBE4C03004 / BEBE4C03101 / BEBE4C11001

  • Stamping Number: L221PBC

  • Alternative Nozzle: L025PBC

  • Fit System: Suitable for E1 EUI

  • Material: High-Speed Steel (HSS)

  • Warranty: 12 Months

Applications

  • Heavy-duty trucks and commercial vehicles (including Volvo FH12, FM12)

  • Volvo construction equipment (including excavators EC360B, EC460B, wheel loaders L220E)

  • Compatible engine models: Volvo D12, D12C, D12D

5. Meta Data / Specifications Table

OE: BEBE4C03001 / BEBE4C03002 / BEBE4C03003 Stamping Number: L221PBC Alternative Nozzle: L025PBC Fit System: Suitable for E1 EUI Fit Engine: Volvo D12, D12C, D12D Compatible Injectors: BEBE4C03001, BEBE4C03002, BEBE4C03003, BEBE4C03004, BEBE4C03101, BEBE4C11001 OEM Cross Reference: 20430583, 8113941, 20440382, 3803938 Material: High-Speed Steel (HSS) Warranty: 12 Months
